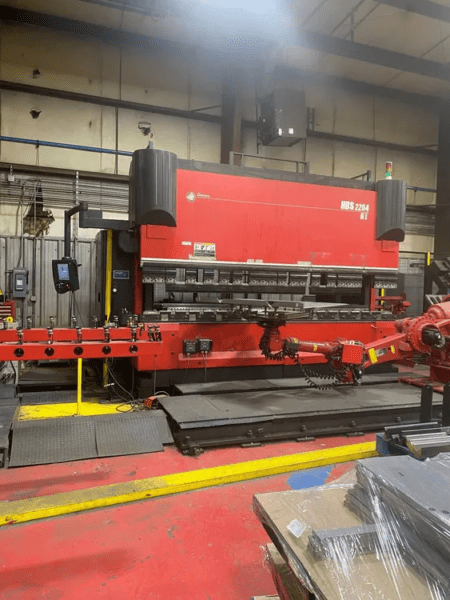

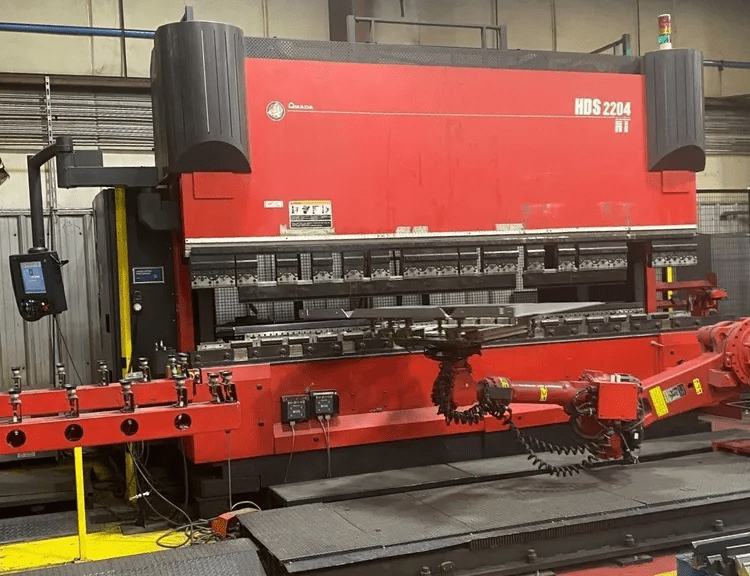

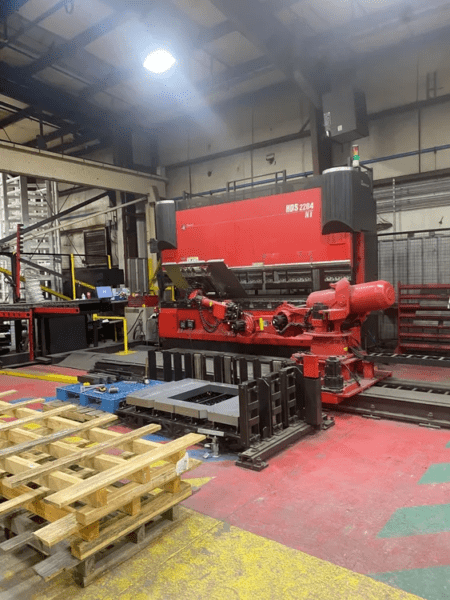

2012 Amada HDS2204NTW CNC Hydraulic Press Brake – 242 Ton x 14′ – 8-Axis – Robotic Ready
2012 Amada HDS2204NTW CNC Hydraulic Press Brake available with high-capacity forming, advanced CNC control, and optional robotic bending automation. This 242-ton, 14-foot press brake is built for precision, repeatability, and heavy-duty production work. Ideal for shops running cold rolled and hot rolled steel applications, including thick plate bending up to 1″ material.
Equipped with Amada AMNC control and 8-axis configuration for complex forming requirements. Machine is robotic-ready and available with an Astro 165W NT Robotic Bending System (optional at additional cost), providing automated loading and multi-axis part handling for high-throughput environments.
Well-suited for contract manufacturers, OEM production, and advanced fabrication operations requiring long bed length and high tonnage capacity.
Machine Highlights:
-
Capacity: 242–243 Ton x 14 ft
-
CNC Hydraulic Press Brake
-
8-Axis Control System
-
Amada AMNC CNC Control
-
Bend Capacity: Up to 1″ material (application dependent)
-
Suitable for Cold Rolled & Hot Rolled Steel
-
Robotic Bending System Available (Optional)
-
High open height and long stroke for deep box and complex bends

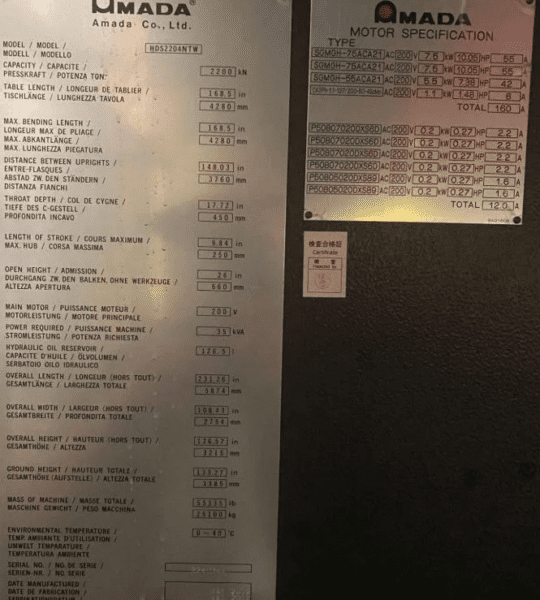

Core Specifications:
-
Tonnage: 242–243 Ton
-
Overall Bed Length: 14 ft
-
Between Housings: 148″
-
Overall Length: 168.5″
-
Stroke: Up to 17.72″
-
Open Height: 26″
-
Approach Speed: 7.87 IPS
-
Bending Speed: 0.78 IPS
-
Axes: 8
-
Power Requirement: 99 Amps @ 200V
-
Hydraulic Oil Capacity: 33.4 Gallons
-
Machine Dimensions: Approx. 13′ x 7′ x 15′
-
Machine Weight: Approx. 53,550 lbs

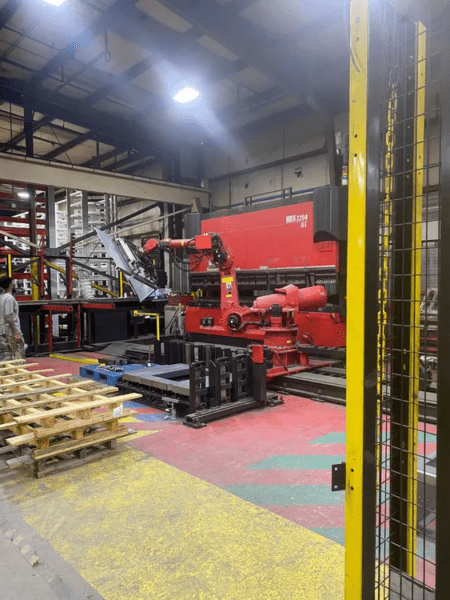

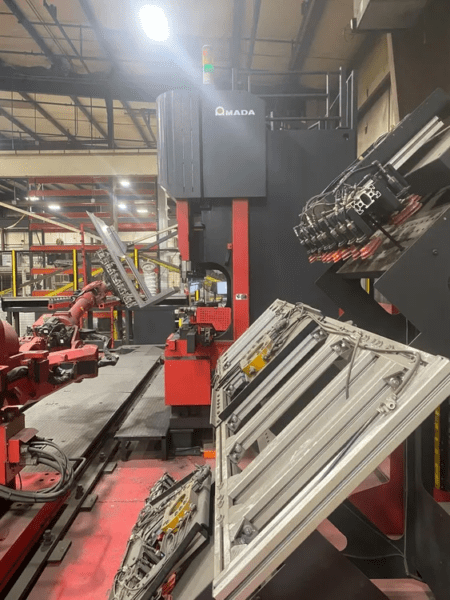

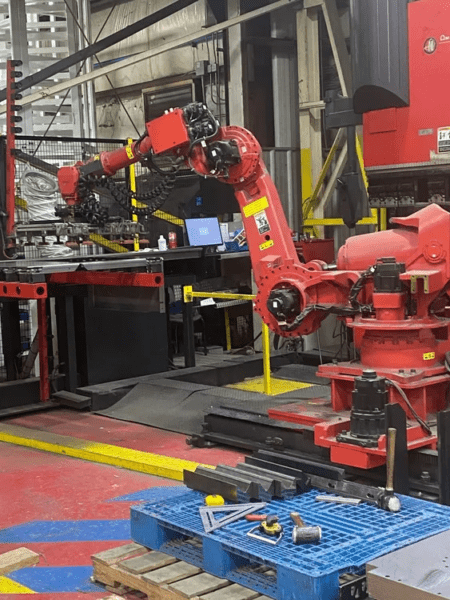

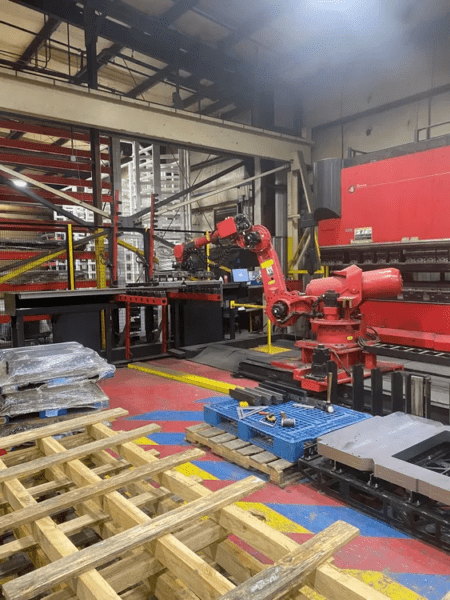

Optional Automation – Astro 165W NT Robotic Bending System (Add $39,500):
-

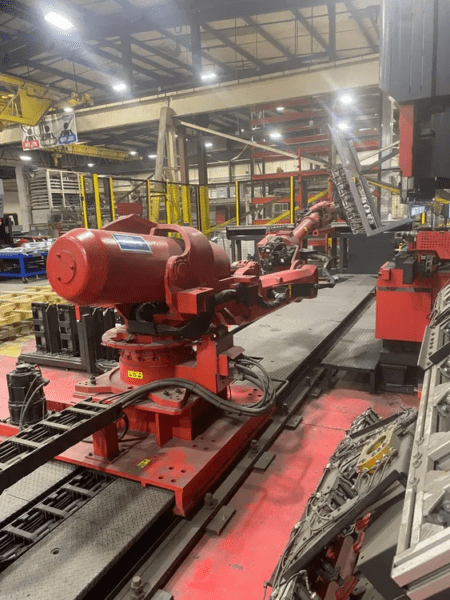

Vertical 6-Axis Multi-Joint Robot + Traveling Axis
-
Travel Axis Length: 15.75 ft or 20 ft
-
Lifting Capacity: 364 lbs (including hands)
-
Max Part Size: Up to 59″ x 118″ (up to 157″ on HDS 2204 NT)
-
Min Part Size: 5.9″ x 5.9″
-
Thickness Range: 0.024″ to 0.236″ (with special hands)
-
Positioning Accuracy: ±0.0027″ (robot), ±0.0078″ (axis)
-
Power Requirement: 6 KVA
-
Robot Weight: Approx. 3,400 lbs
Typical Applications:
-
Heavy plate bending
-
Structural components
-
Long-part fabrication
-
Automated batch bending
-
Precision multi-axis forming
Inspection under power and additional details available upon request. Rigging and freight not included unless quoted separately.
$97,900 + rigging and freight
