2003 Kuraki KBT-13EA CNC Table Type Horizontal Boring Mill

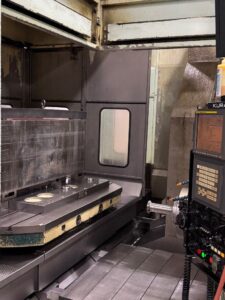

Thumbnail for the listing's main imageClick to enlarge image.
Contact Information
Contact Brian
414.639.0849
Visit Website
More Information

Manufacturer: Kuraki
Model: KBT-13EA
Year: 2003
Type: CNC Table Type Horizontal Boring Mill

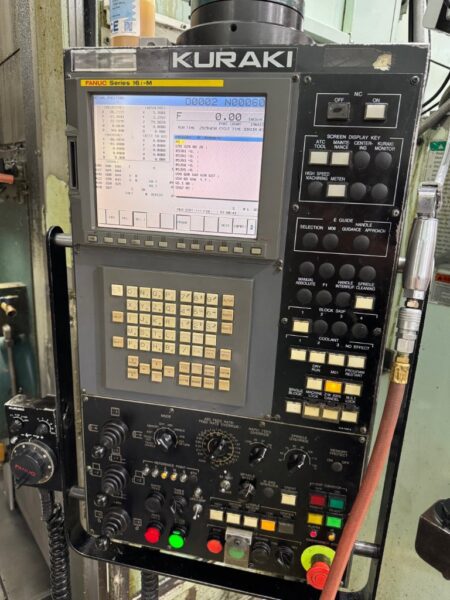

Control: Fanuc Series 16i-MB

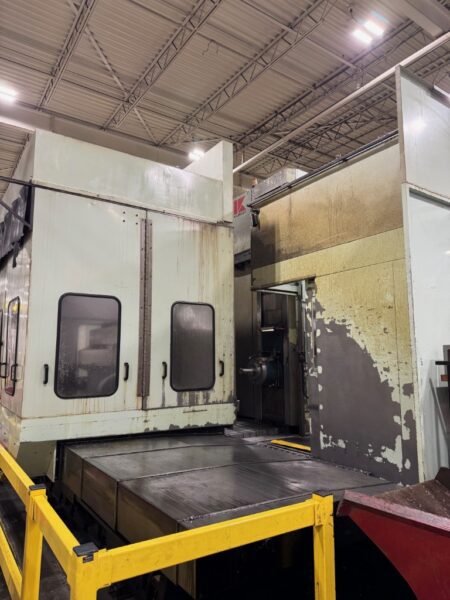

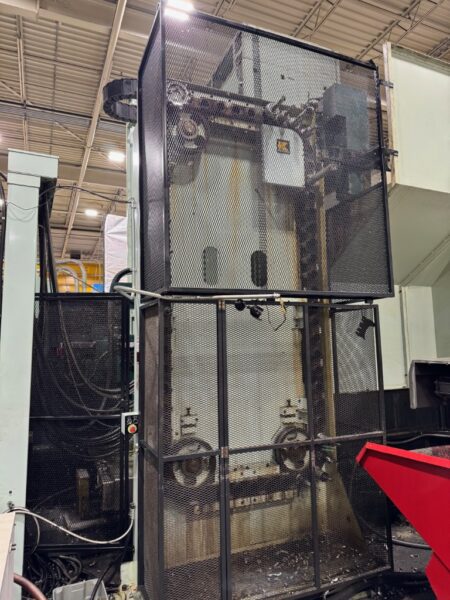

2003 Kuraki KBT-13EA CNC horizontal boring mill with 130mm spindle and built-in B-axis rotary table. Table type configuration with box-way construction and full enclosure. Suitable for machining large castings, weldments, and multi-face components.

Specifications

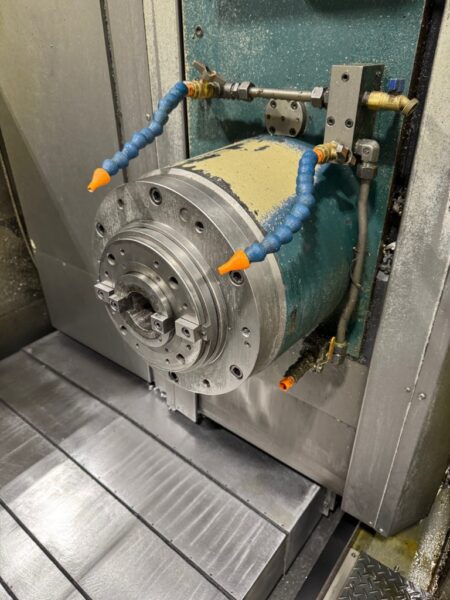

Spindle:

  • Diameter: 130mm (5.1″)

  • Taper: BT-50

  • Speed Range: 5 – 4,000 RPM

  • Spindle Stroke (W-Axis): 25.59″ (650mm)

  • Main Motor: 60 HP (45 kW)

Travels:

  • X-Axis (Table): 157.48″ (4000mm)

  • Y-Axis (Vertical Head): 90.55″ (2300mm)

  • Z-Axis (Column Cross): 51.18″ (1300mm)

  • W-Axis (Spindle): 25.59″ (650mm)

  • B-Axis: 0.001° Increment

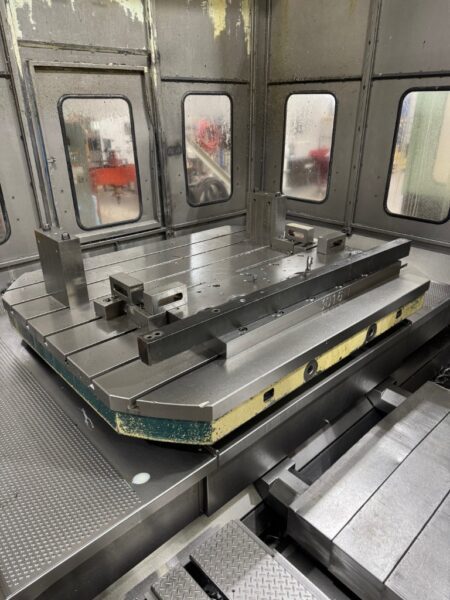

Table:

  • Size: 70.87″ x 86.61″ (1800mm x 2200mm)

  • Load Capacity: Approx. 19,958 kg (44,000 lbs)

Feed Rates:

  • Cutting Feed: 4001 mm/min

  • Rapid Traverse (X/Y/Z): 10,000 mm/min

  • Rapid Traverse (W): 6,000 mm/min

Machine Data:

  • Floor Space: 6830mm x 6800mm

  • Height: 4798mm

  • Weight: Approx. 81,300 lbs (36,922 kg)

Equipped With (To Be Verified)

  • 60 Position Automatic Tool Changer

  • Coolant Thru Spindle – 1000 PSI

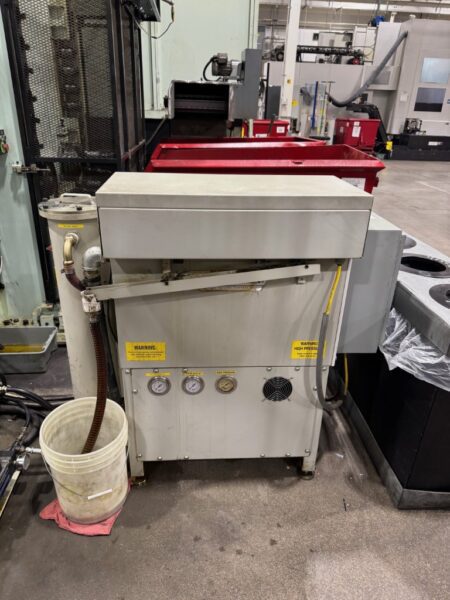

  • Chip Blaster – 1000 PSI

  • LNS Chip Conveyor

  • Chip Auger

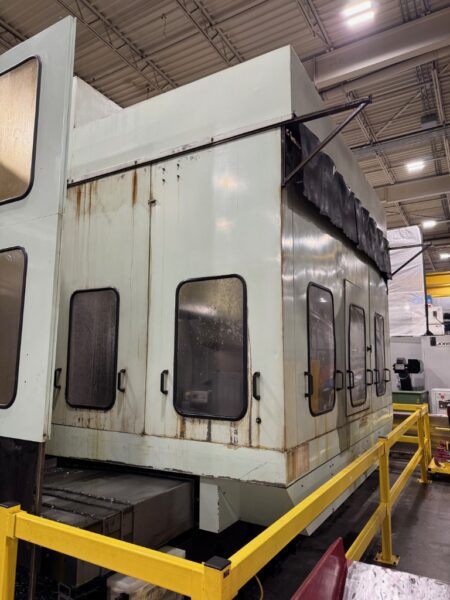

  • Full Chip & Splash Enclosure

  • Telescoping Steel Way Covers

  • Scale Feedback on All Axes

  • 150 KVA Transformer – 480V, 3 Phase



Machine available for inspection. Additional details, pricing, and photographs available upon request.
