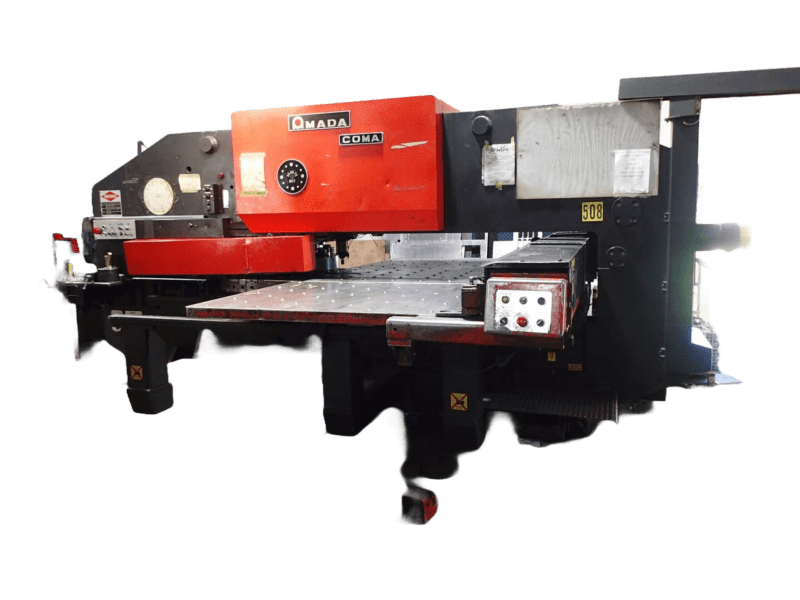

2005 Amada COMA 50-60-72 CNC Turret Punch Press
55 Ton Capacity • 60″ x 72″ Sheet Size • Fanuc Oi-PF Control • 44 Station Turret
Description
2005 Amada COMA 50-60-72 CNC Turret Punch Press equipped with Fanuc Oi-PF CNC control and a 44-station turret with two auto-index stations. This 55-ton mechanical turret punch press offers high-speed axis motion, precision servo drive systems, and a large sheet capacity suitable for production punching and nibbling operations.
The machine features precision ground ball screws, AC servo motors, hydraulic work clamps, and automatic repositioning capability for processing larger sheets.
Specifications
Manufacturer: Amada
Model: COMA 50-60-72
Year: 2005
Control: Fanuc Oi-PF CNC Turret Punch Control
Punching Capacity: 55 Tons
Maximum Sheet Size:
60″ x 72″
(Longer sheets with automatic repositioning)
Maximum Material Thickness: .375″
Maximum Hole Diameter: 4.5″
Maximum Sheet Weight (Ability): 660 lbs
Maximum Sheet Weight (Sustained): 485 lbs
Turret Capacity: 44 Stations
Auto-Index Stations: 2
Ram Stroke Length: 1.25″
Performance
Axis Speed: 2,500 IPM
Turret Speed: 33 RPM
Hits Per Minute (1″ Moves): 200
Nibbling Strokes Per Minute: 300
Minimum Programmable Increment: .001″
Drive System
Precision Ground Recirculating Ball Screws (X & Y)
AC Servo Driven Axes
AC Servo Turret Drive
Control Features
Fanuc Oi-PF CNC Control
Conversational Programming (Manual Guide i)
Ethernet Data Connectivity
Automatic Repositioning
Absolute or Incremental Programming
Metric or Inch Programming
Lights-Out Scheduling Capability
Additional Features
Hydraulic Work Clamps
Crash-Proof Clamp Sensing System
Strip Miss Detection
Trap Door
Tool Hoist
Hardened & Ground Turret Index Pins
Climate-Controlled Sealed Electrical Cabinet
USB & Ethernet Data Ports
Electrical
460 Volt
3 Phase
60 Cycle
Machine Weight
Approx. 39,700 lbs
Pricing
P.O.R. – Price On Request
Rigging and freight are additional.
