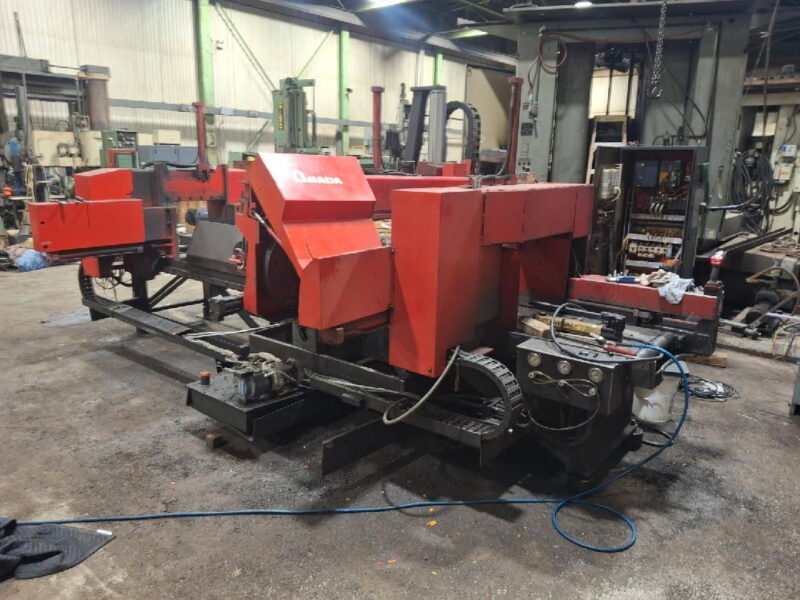

2015 Amada CNC Horizontal Band Saw – 24″ x 20″ Capacity

Contact Brian
Phone: 1-888-884-2447
Visit Website

Price: $ 45,000.00

2015 Amada CNC Horizontal Band Saw – 24″ x 20″ Capacity

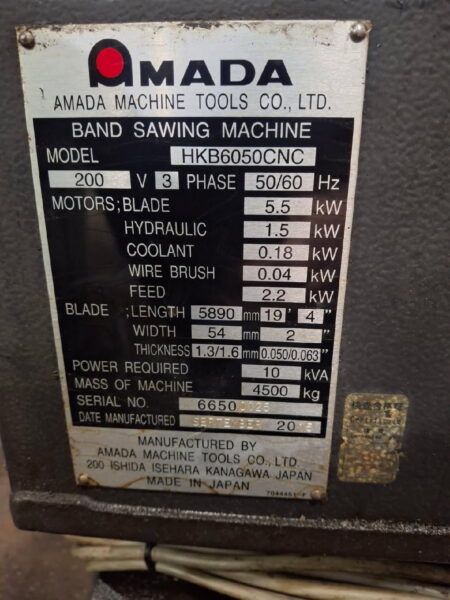

Manufacturer: Amada
Year: 2015
Type: CNC Horizontal Metal Band Saw

Capacities:

• Round Capacity: 20″
• Rectangular Capacity: 24″ x 20″

Specifications:

• Blade Length: 232″
• Blade Size: 19′ 4″ x 2″ x 0.050″
• Blade Width: 2″
• Blade Speed: 49 – 325 FPM
• Blade Tension: Hydraulic
• Work Load Capacity: 9,923 lbs

Drive & Power:

• Saw Drive Motor: 7.5 HP
• Hydraulic Motor: 2 HP

Feed & Control:

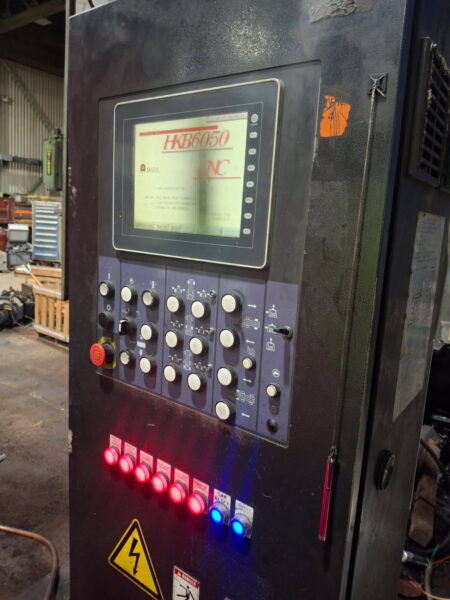

• Control: Amada CNC Control
• Feed System: AC Servo Motor with Rack & Pinion
• Rear Indexing Stroke: 78.7″
• Front Vise Stroke: 23″

Features:

• Automatic Guide Width Adjustment
• Blade Deviation Monitor
• Bundle Cutting Capability

Dimensions & Weight:

• Dimensions: 169.8″ W × 226.1″ L × 91.7″ H
• Weight: 15,215 lbs

---

F.O.B. Location: Iowa
Condition: Used
