ACCURL Genius Guillotine Shears Model MS8-13×3200 10′ Shear CNC
ACCURL Genius Guillotine Shears Model : MS8-13×3200 (10′)
* Excellent cut, perfect speed. ACCURL CNC Hydraulic Guillotine Shear can cut all kind of metal sheet
to maintain the highest production capacity with maximum precision and quality
* Tough construction with the same solid framework we use for all of Accurl Shears
* User friendly Germany ELGO P40T Touch Screen CNC control unit
* Better cuttings:
* Automatic calculations of the shear functions upon material specifi cations
* Blade Gap Adjustment
* Cutting angle Adjustment

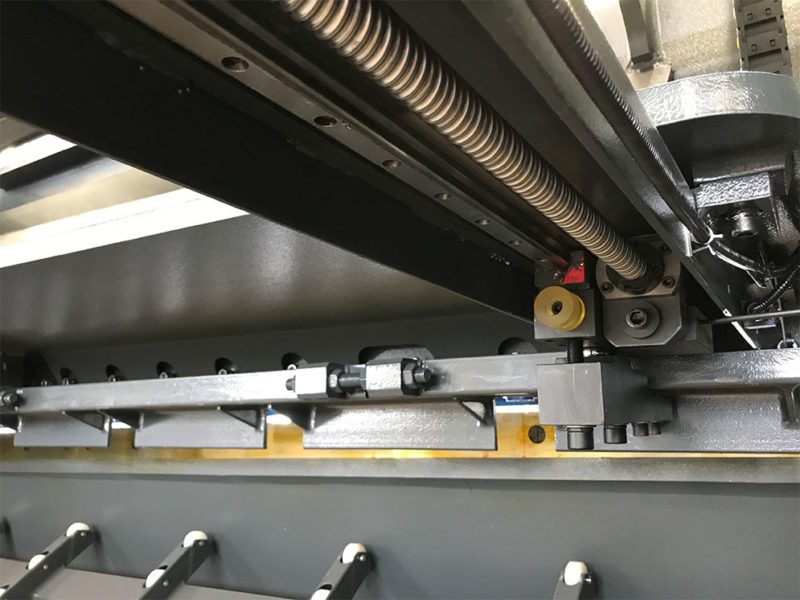

• Ball screw back gauge 800 mm

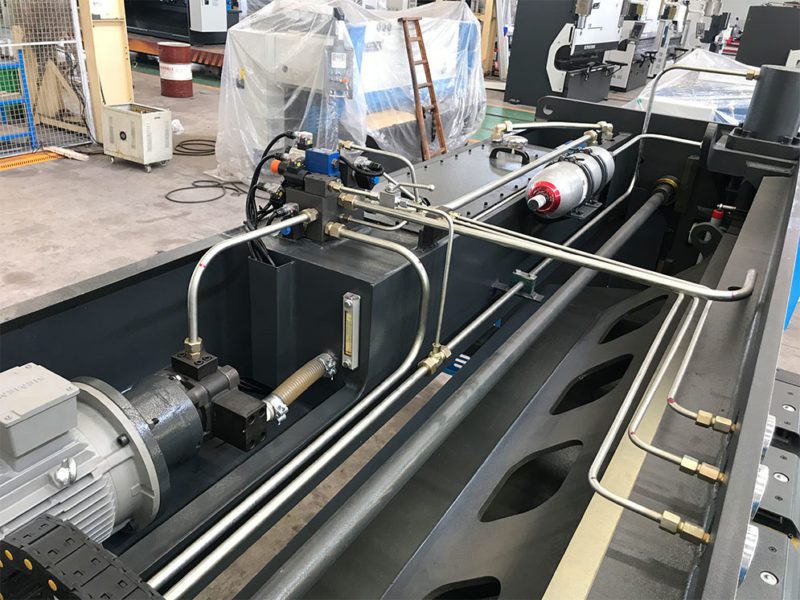

* Efficient, low noise and accurate hydraulic system BOSCH REXROTH.
* Silent and reliable internal gear pump from HOERBIGER.
* Frequency inverter for back gauge motor control
* Square support arm with 1000mm scale and flip
* Protection covers (side and rear safety doors)
* Usage of high-tech boring machines for extreme precision parts:
* ACCURL® chooses the best products to guarantee long-lasting and high-tech machines.
* ACCURL® selects the best components.
* In built safety systems (light guards & Laser beam safety photocells as standard, CE certified.).
Also: Please see the list of our available press brakes and shears coming in for stock listed below:
Shears
• 10′ x 3/8″ Guillotine
• Auto Blade Gap Adjustment, Auto Rake Angle Adjustment, Delem DA-360S control, Pneumatic Sheet Supports
• 10′ x 1/4″ Guillotine
• 8′ Squaring Arm, Auto Blade Gap Adjustment, Auto Rake Angle Adjustment
• 10′ x 1/4″ Guillotine
• Touchscreen Control, Pneumatic Sheet Support
Press Brakes:
• 13′ x 192 Ton
• 7 + 1 Axis Configuration w/ X Prime, Delem DA-66 T Control, CNC Crowning, DSP Safety Lasers
• 13′ x 176 Ton
• 2 Axis Configuration, Delem DA-41 Control, Manual Crowning, DSP Safety Lasers
• 10’x 148 Ton
• 4+1 Axis Configuration, Delem DA-58T Control, American Clamps and Tooling, CNC Crowning, DSP Safety Lasers
• 13′ x 242 Ton
• Demo Machine, 6+1 Axis Configuration,Delem DA-66T Control, CNC Crowning, DSP Safety Lasers
• 13′ x 242 Ton
• 4+1 Axis Configuration, Delem DA-58T Control, CNC Crowning, DSP Safety Lasers
• 10′ x 148 Ton Genius
• 6+1 Axis Configuration, Delem DA-66T Control, Wila Pro Clamping, ECO Energy Saving Drive, Lasersafe Safety Lasers
• 13’x 242 Ton
• 6+1 Axis Configuration, Delem DA-66T Control, CNC Crowning, DSP Safety Lasers

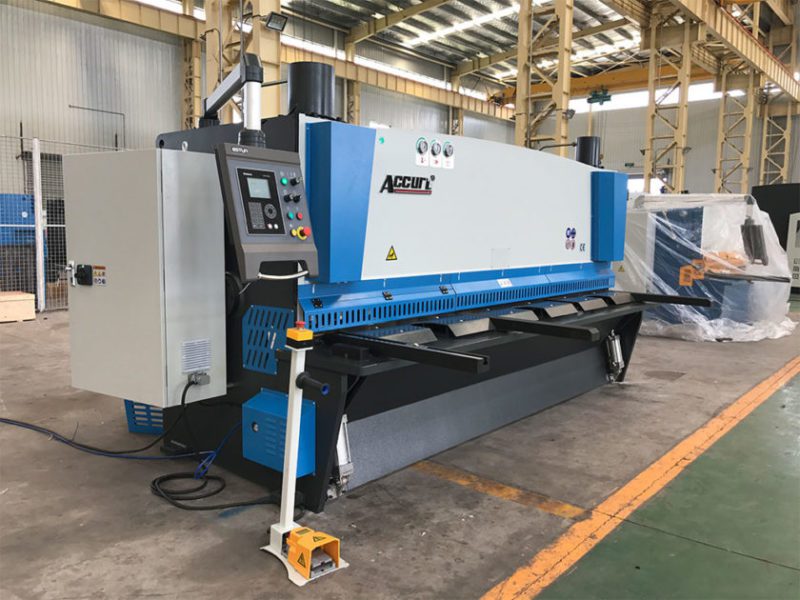

ACCURL CNC Hydraulic Guillotine Shear MS8-6x3200mm
Excellent cut, Perfect speed:
ACCURL CNC MS8 Hydraulic Guillotine Shear can cut all types of metal sheet to maintain the highest production capacity with maximum precision and quality. More than just cutting. CNC MS8 is developed by expert engineers of ACCURL reflects innovative technology with all aspects of it.
Description

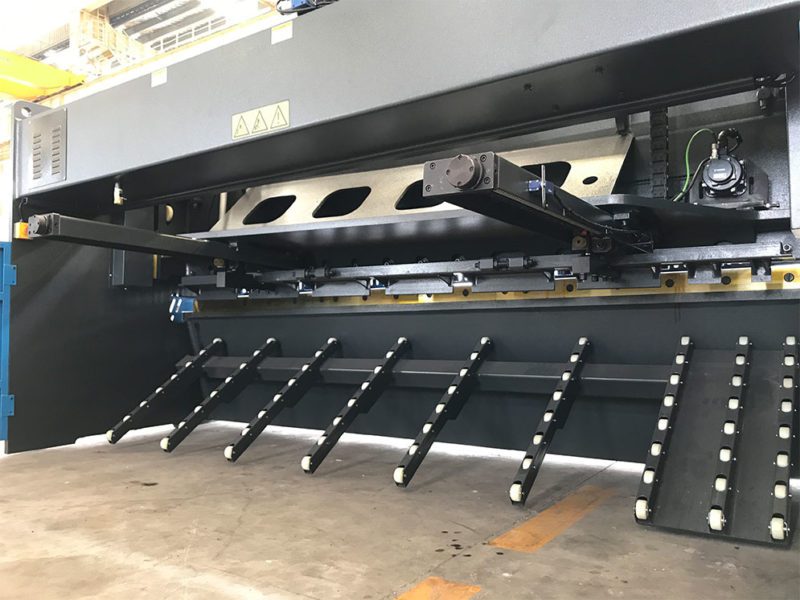

ACCURL CNC Hydraulic Guillotine Shear MS8-6x3200mm with Pneumatic Sheet Support System
Excellent cut, Perfect speed: ACCURL CNC MS8 Hydraulic Guillotine Shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality.
More than just cutting; CNC MS8 is developed by expert engineers of ACCURL reflects innovative technology with all aspects of it Standard Equipment: Wear resistant blades for Top blade4 cutting edge and Bottom blade4 cutting edge
Portable foot pedal is eligible for single and automatic cutting.
CNC controlled hydraulic blade gap adjustment system.
CNC controlled cutting angle adjustment system.
DELEM DAC360sCNC controller System
CNC controlled motorized backgauge system.
1000 mm motorized back gauge system with 0.1 mm accuracy.
Front support arms with T slot, ruler and flip stop.
Squaring arm.
Scales with metric and inches.
Cutting line illumination and shadow line.
Central lubrication system.
Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
Rear sliding plates.
Front sliding plates with ball bearings on the table.
Better Cuttings:
Backgauge adjustment according to blade gap.
.Backgauge retraction feature.
Sub-program and programming loop.
.Sequence repeat function.
Automatic calculations of cutting functions upon material specifications.
More cutting sequence and programming memory.
