Spray Systems 60′ x 20′ x 14′ Industrial Side-Draft Paint Booth – Drive-Through – Heated – VFD Controls
Used Spray Systems industrial side-draft paint booth available for sale. This is a large, heavy-duty drive-through finishing system designed for painting trucks, large equipment, fabricated assemblies, industrial machinery, and other oversized products.
The booth was in operating service immediately prior to being offered for sale and appears to be in good overall used condition. The system includes its air-makeup and exhaust equipment, heating controls, filtration, electrical control system, and variable-frequency drives.
Specifications

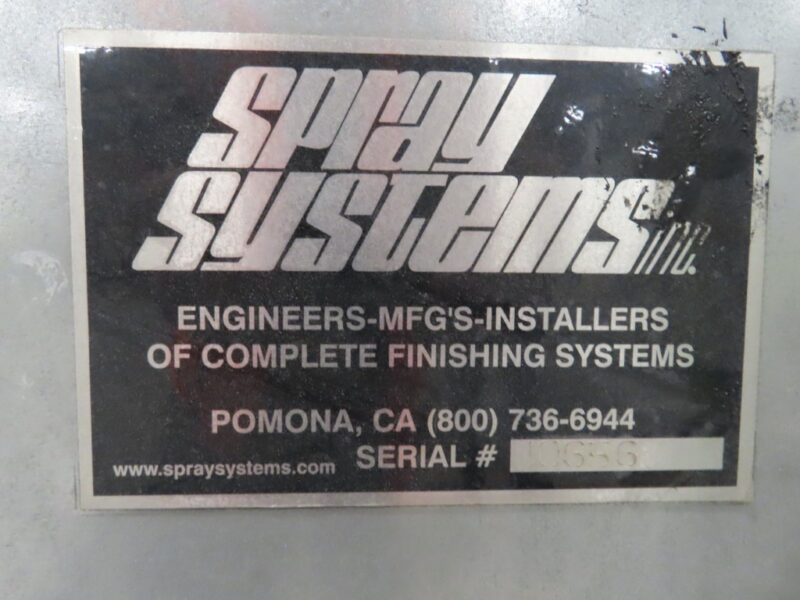

Manufacturer: Spray Systems, Inc.
Booth Type: Industrial Side-Draft Spray / Paint Booth
Configuration: Drive-Through
Interior Dimensions: Approximately 60′ L x 20′ W x 14′ H
Main Door Opening: Approximately 19′ W x 14′ H
Electrical: 460V industrial electrical system
Airflow: Side-draft filtration/exhaust configuration
Floor: Solid floor – no downdraft pit or floor grating required
Condition: Used – recently operating
Equipment & Features
The booth is equipped with substantial industrial finishing-system components, including:

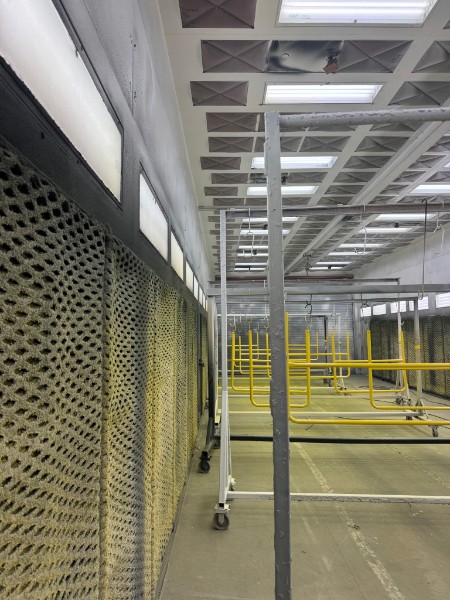

- Dual-side filter banks running along the booth walls
- Extensive ceiling intake filtration

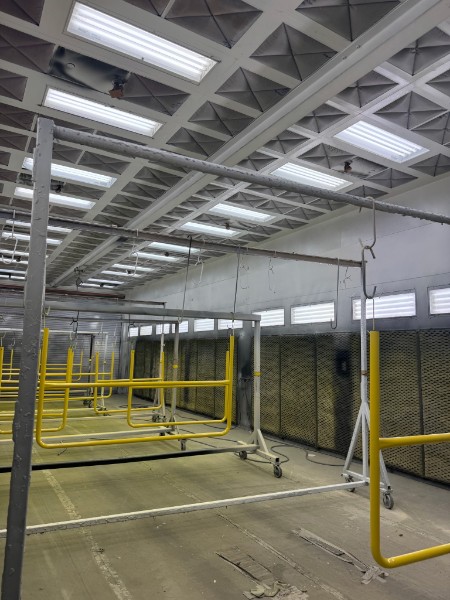

- Large illuminated work area with multiple sealed booth light fixtures

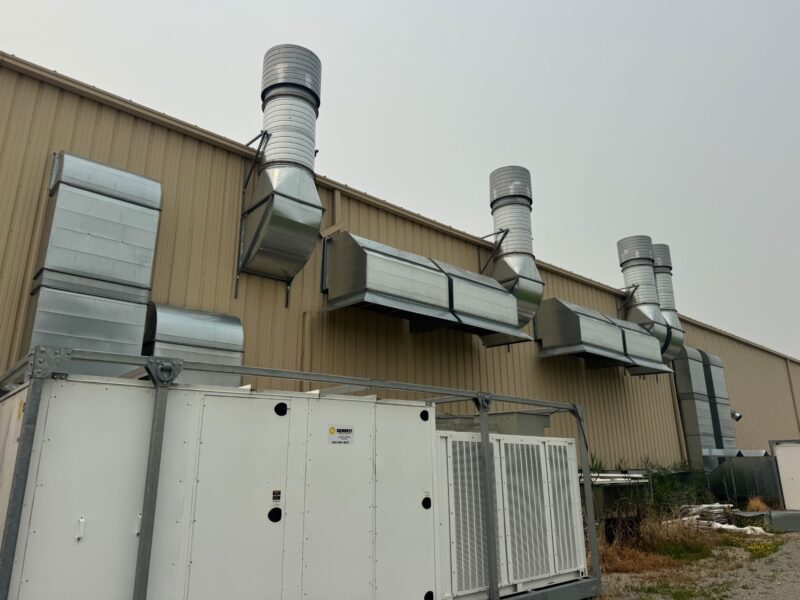

- Air makeup/heating system with two burner/blower sections (AMU 1 and AMU 2)
- Exhaust fan system

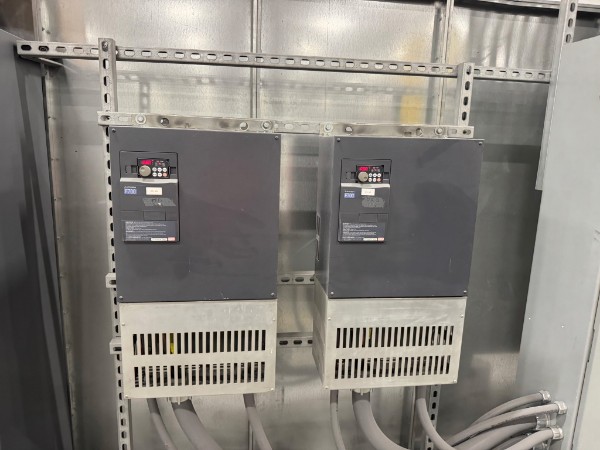

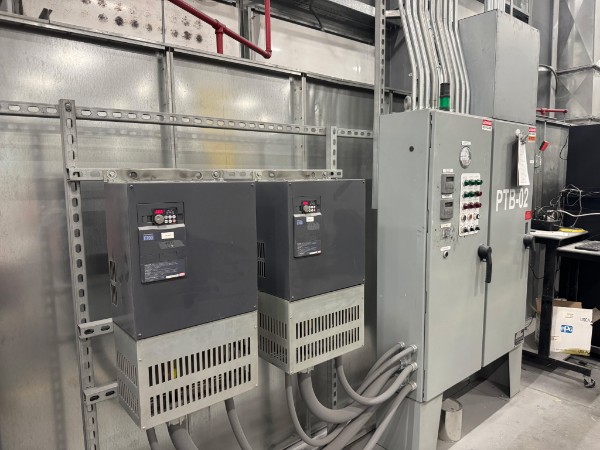

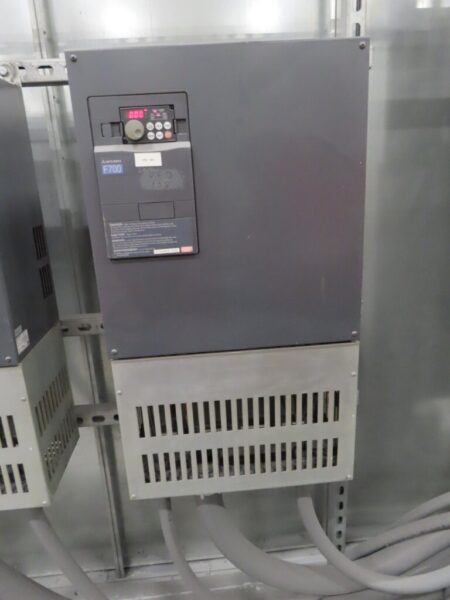

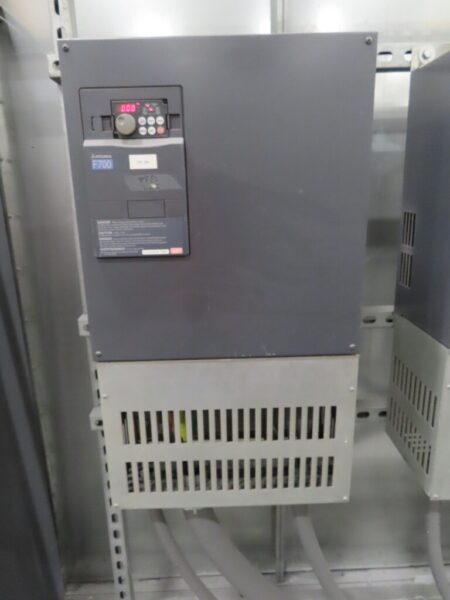

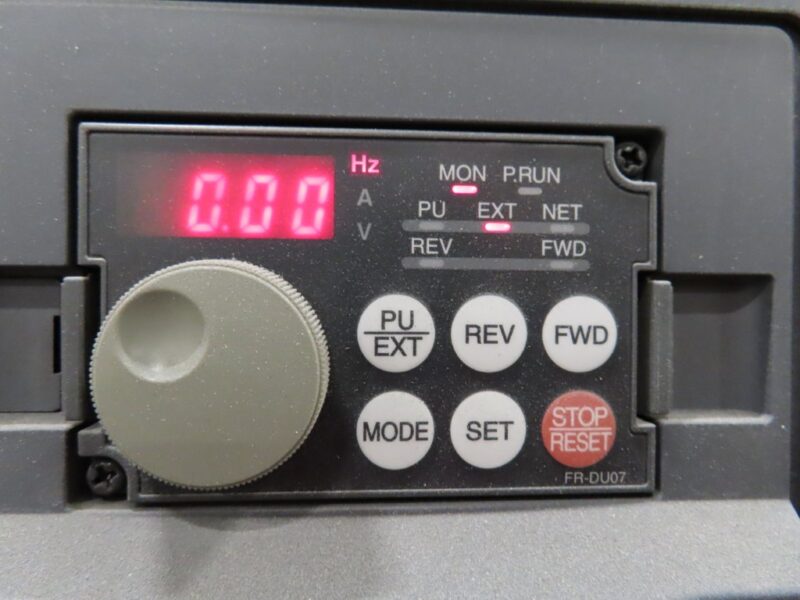

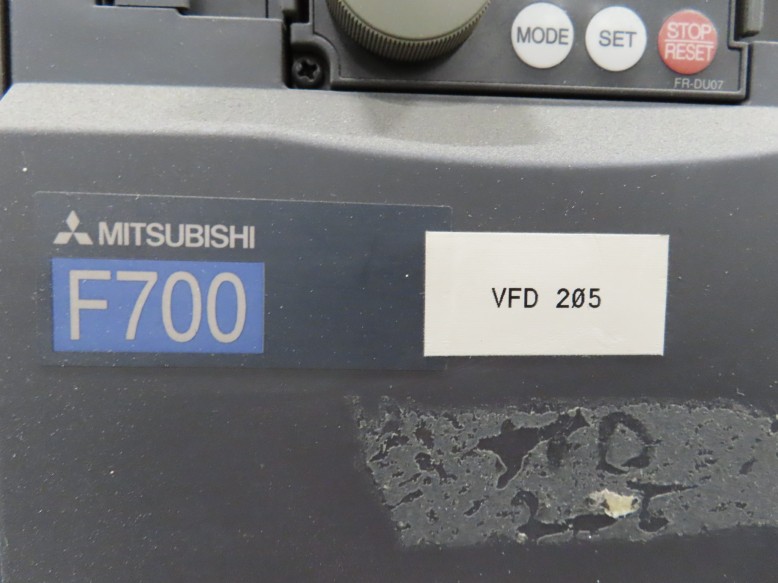

- Mitsubishi F700 variable-frequency drives
- Differential-pressure monitoring for filtration

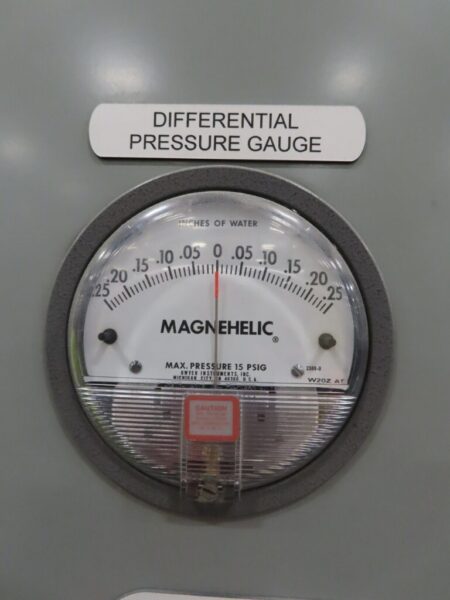

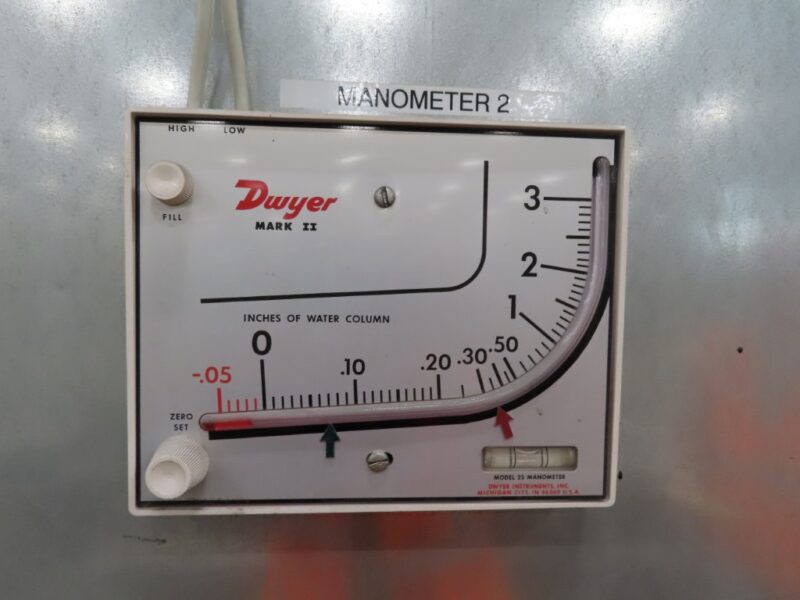

- Dwyer/Magnehelic pressure instrumentation
- Spray/Cure operating controls
- Burner and blower status monitoring
- Flame-failure and clogged-filter indicators
- Heat enable/disable control
- Cure timer

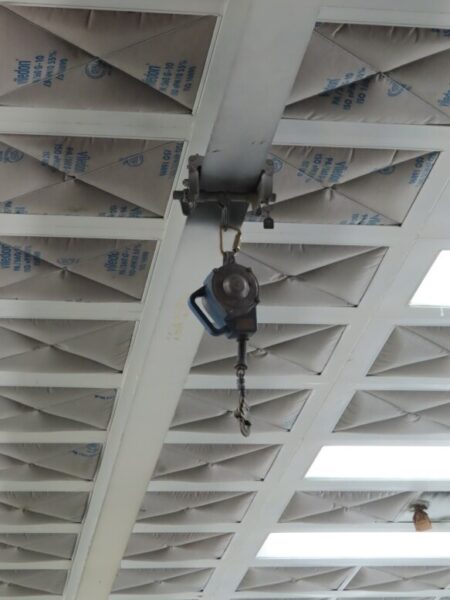

- Overhead center rail with retractable equipment support

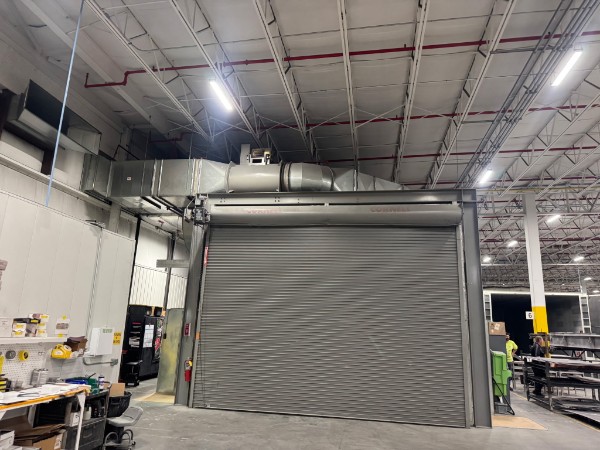

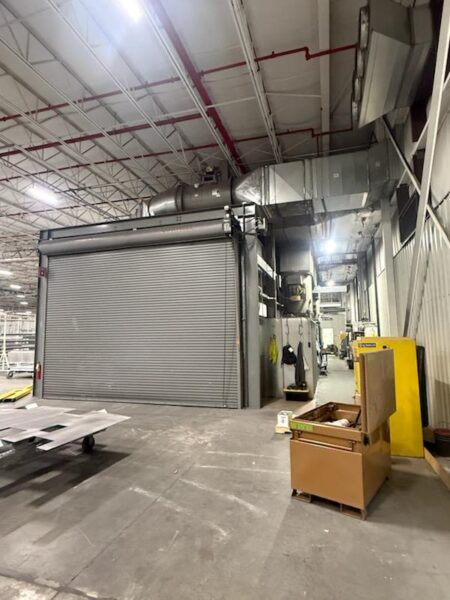

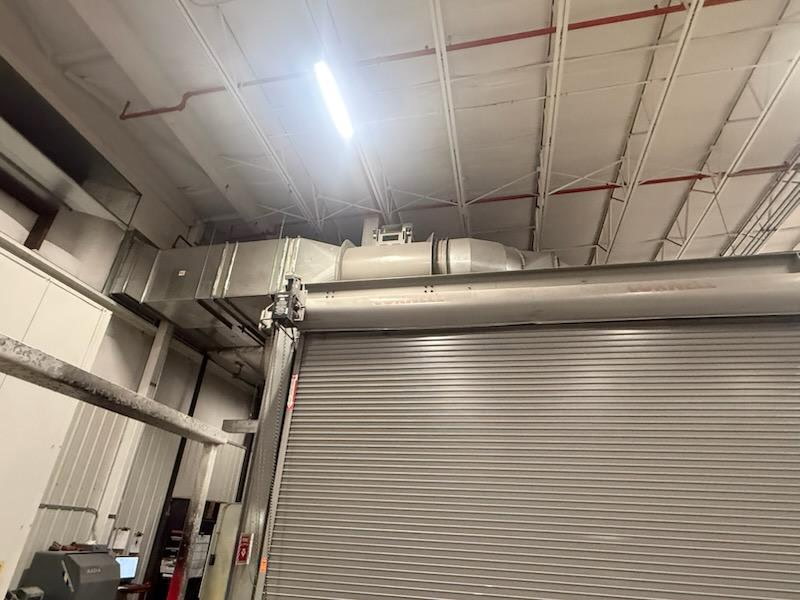

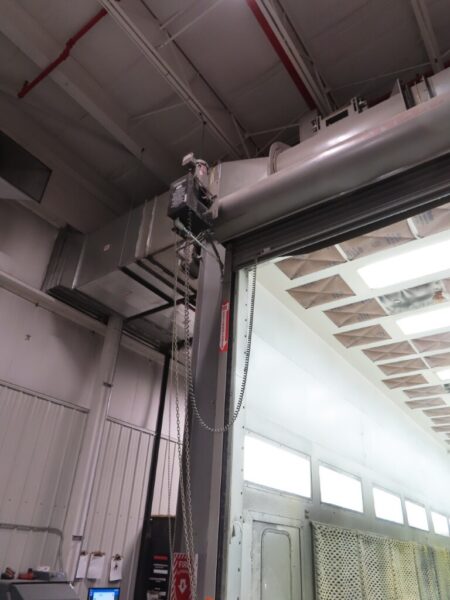

- Large drive-through roll-up doors

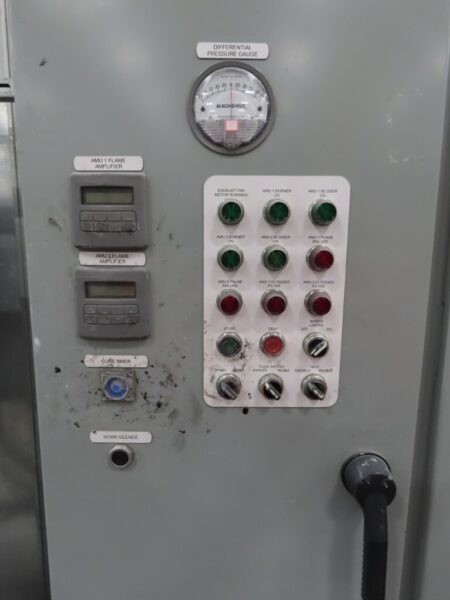

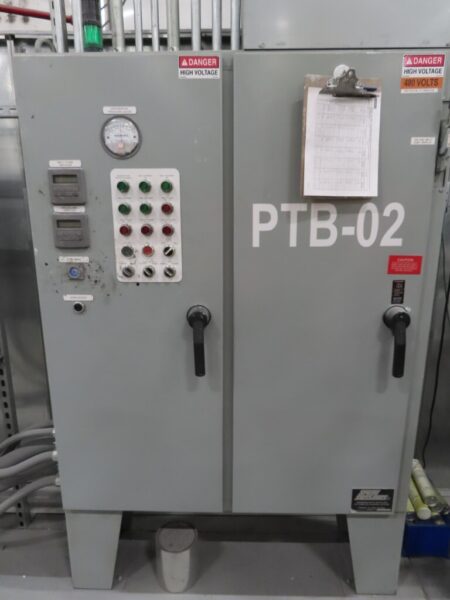

The control system provides centralized operation and monitoring of the exhaust fan, air-makeup blowers, burners, booth lighting, filtration condition, spray/cure modes, and related safety functions.

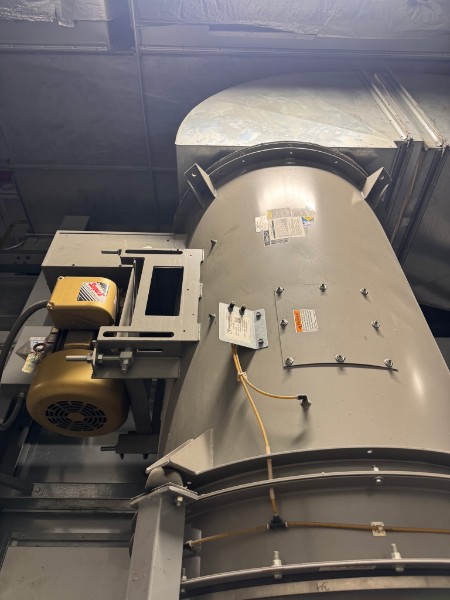

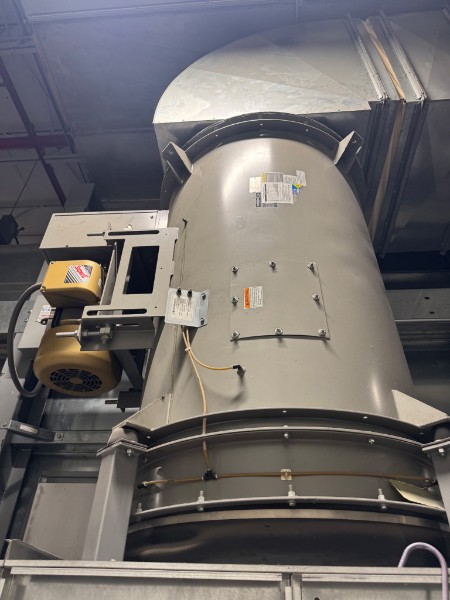

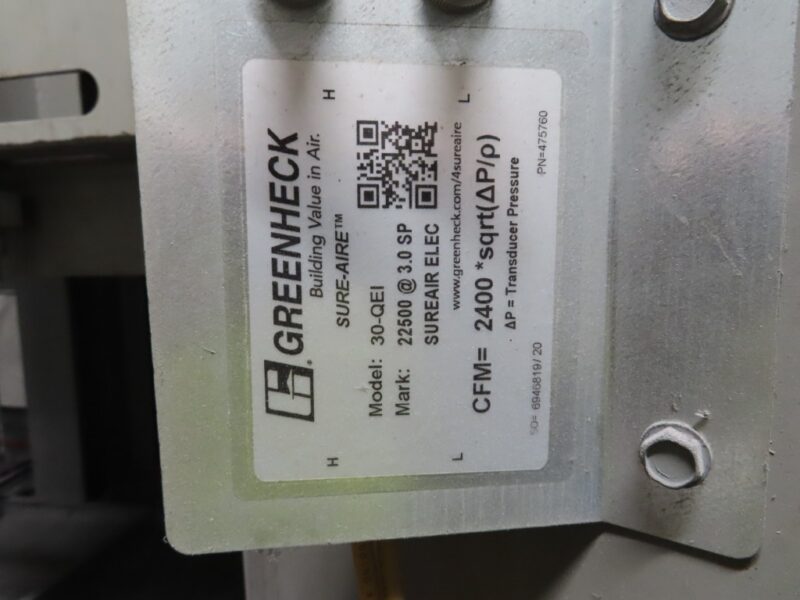

The air-handling equipment includes Greenheck industrial components, and the photographed Greenheck Sure-Aire equipment is rated at 22,500 CFM at 3.0″ SP. A photographed Greenheck fan nameplate indicates maximum class RPM of 1,670 and maximum temperature of 400°F.

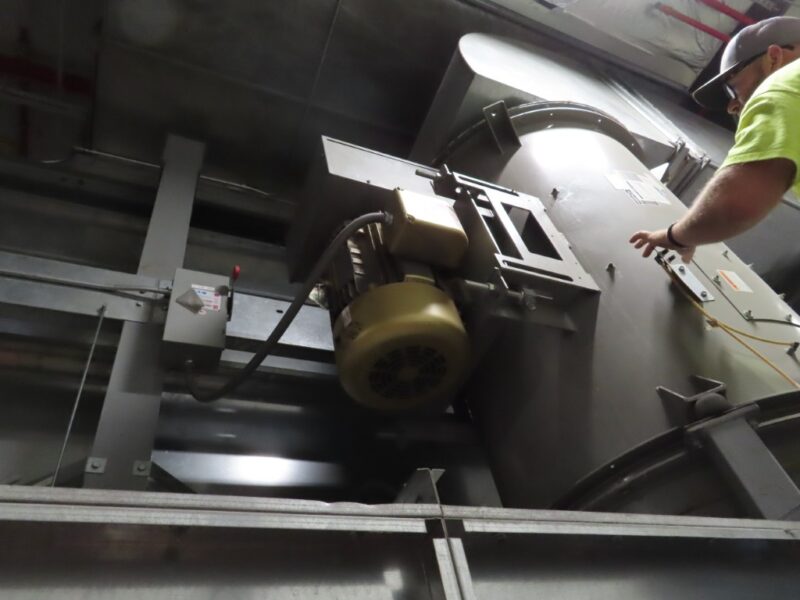

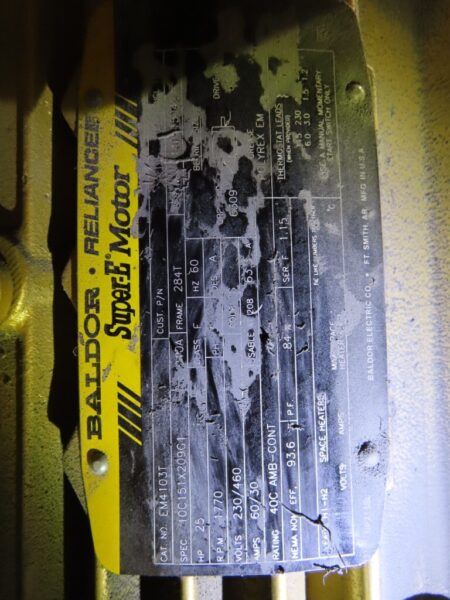

The system also incorporates heavy-duty Baldor Reliance Super-E industrial motor equipment and Mitsubishi F700 VFD control.
Condition

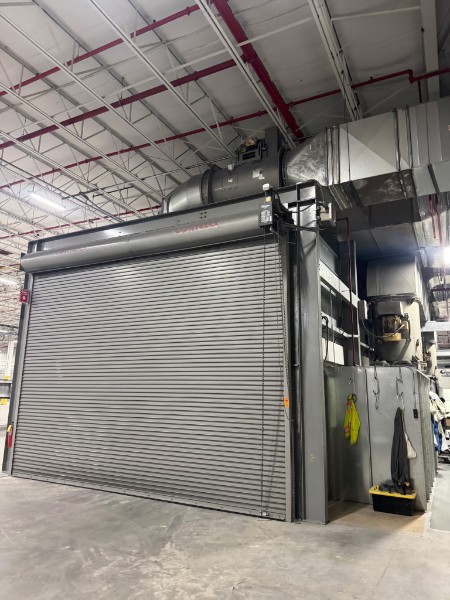

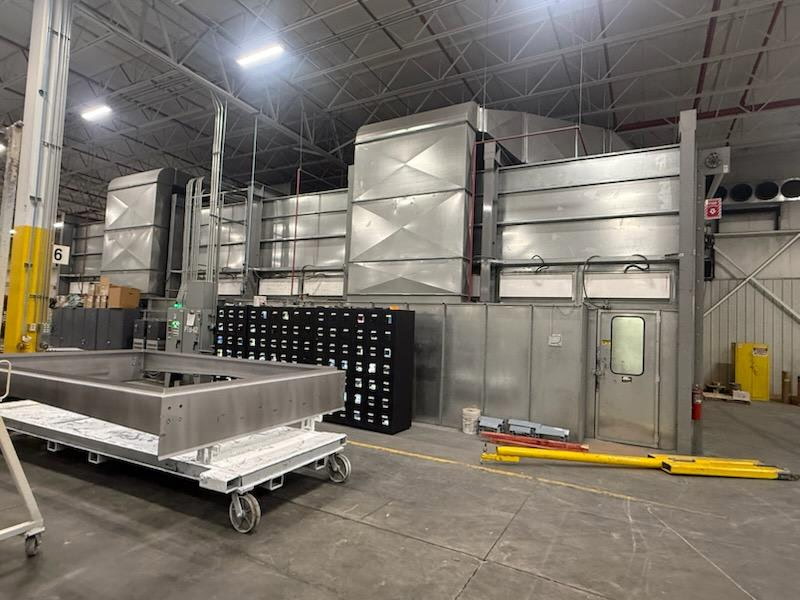

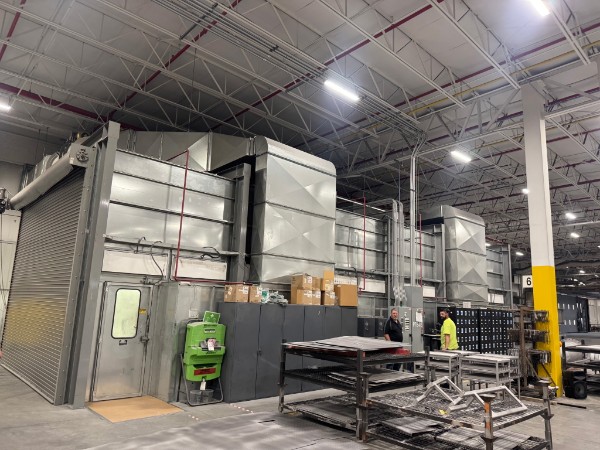

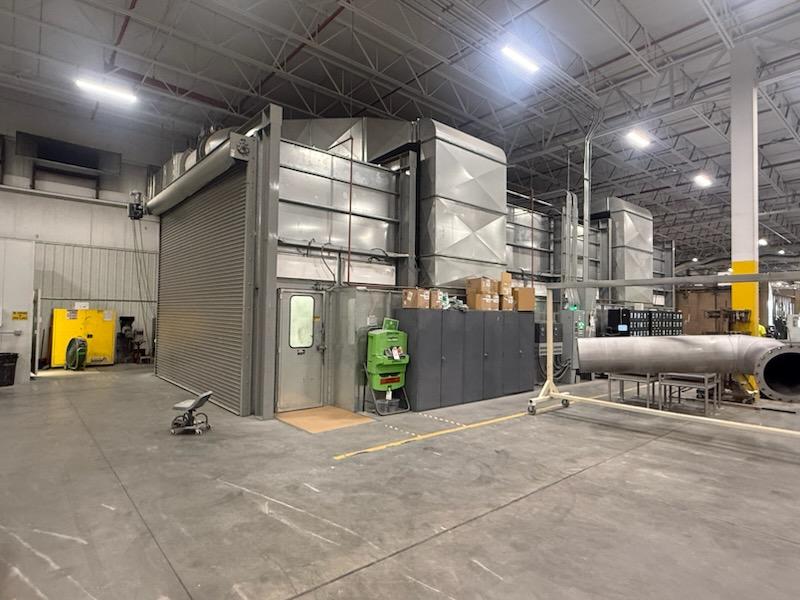

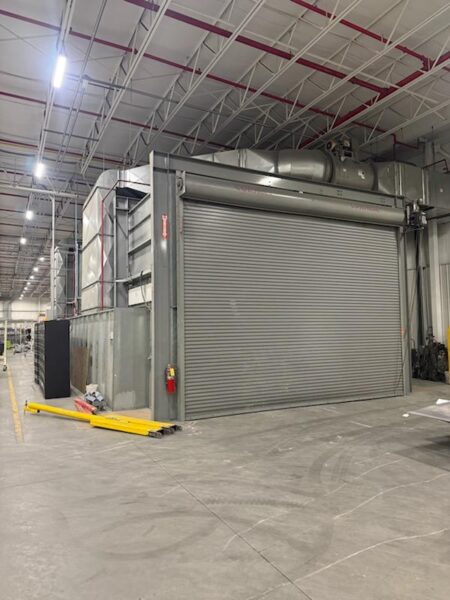

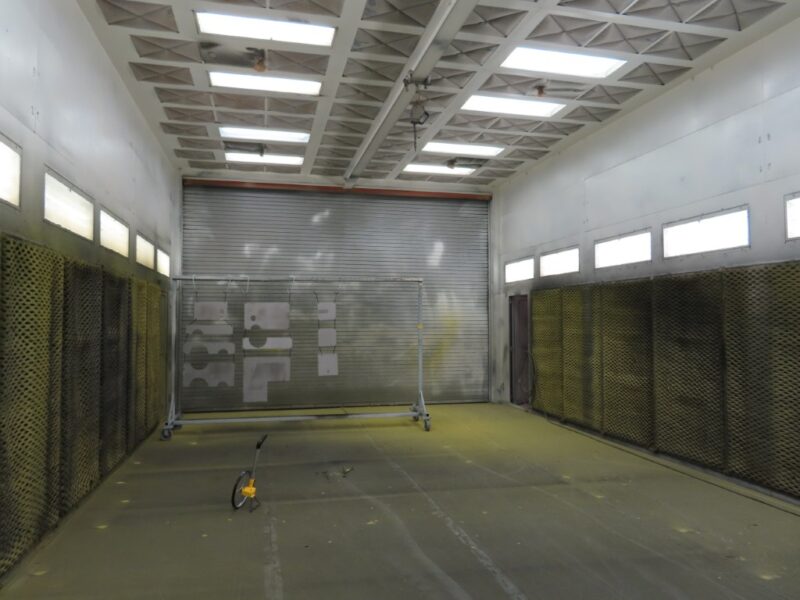

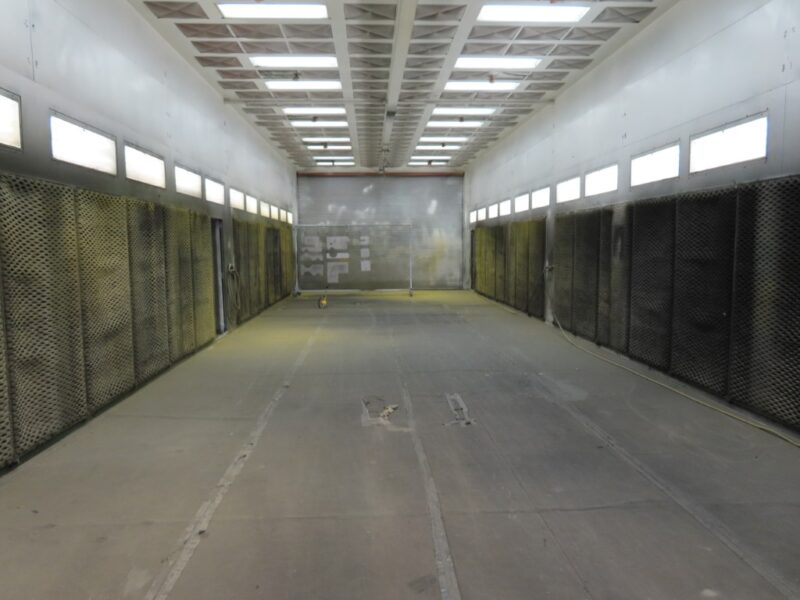

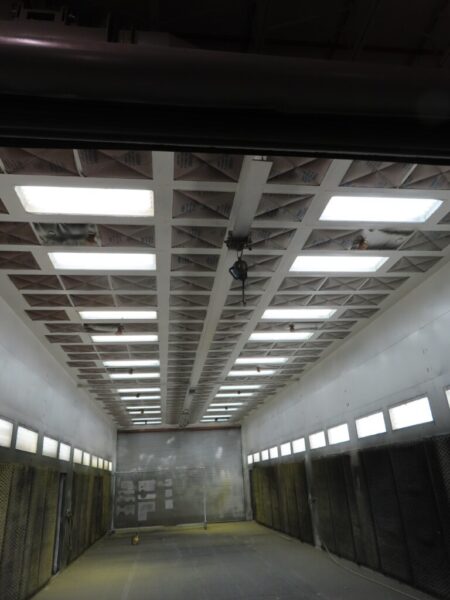

This booth presents as a complete, professionally manufactured industrial finishing system rather than a light-duty automotive spray booth. Interior photographs show the booth, filtration walls, lighting, controls, VFD equipment, air-handling components, and instrumentation.
The booth was observed in operating service prior to being offered for sale.
Equipment is offered used and should be inspected by the buyer to confirm specifications, electrical requirements, airflow requirements, installation requirements, and suitability for the buyer’s application.
Applications
Well suited for industrial painting and finishing of large products including trucks and commercial vehicles, trailers, heavy equipment, agricultural equipment, structural fabrications, machinery, large weldments, and other oversized components.
Price: $125,000 USD
Spray Systems 60′ × 20′ × 14′ side-draft industrial paint booth, currently installed, under power, and in use. Available for inspection by appointment.
Rigging, dismantling, loading, and trucking are not included in the equipment price and are the buyer’s responsibility. A qualified rigger is available to inspect the system and provide those costs directly to the buyer.
Contact Alltech Industrial for pricing, additional photographs, equipment information, and availability.
