2021 Heavy-Duty Steel Apron Chain Incline Conveyor – 76″ Wide – Baler Feed Conveyor
Price: On Request
Location: Great Lakes Region, USA
Buyer Responsible for Rigging, Removal & Freight

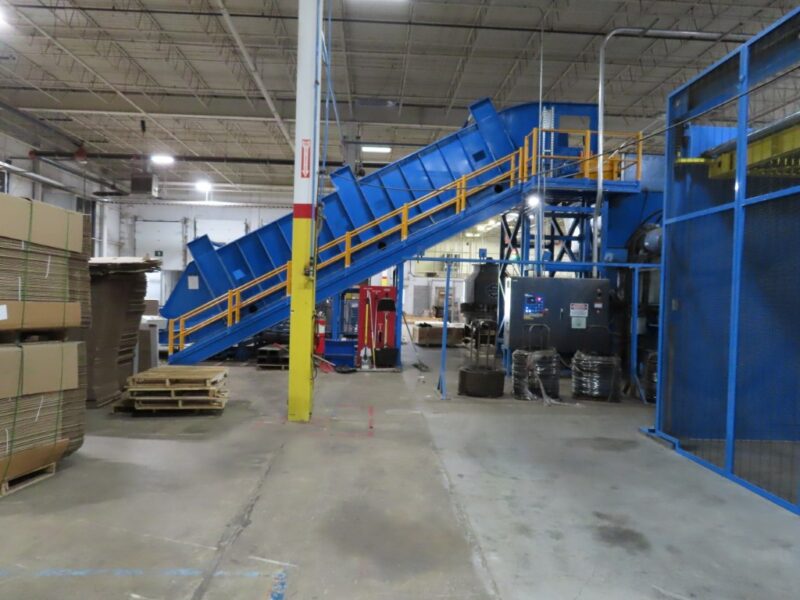

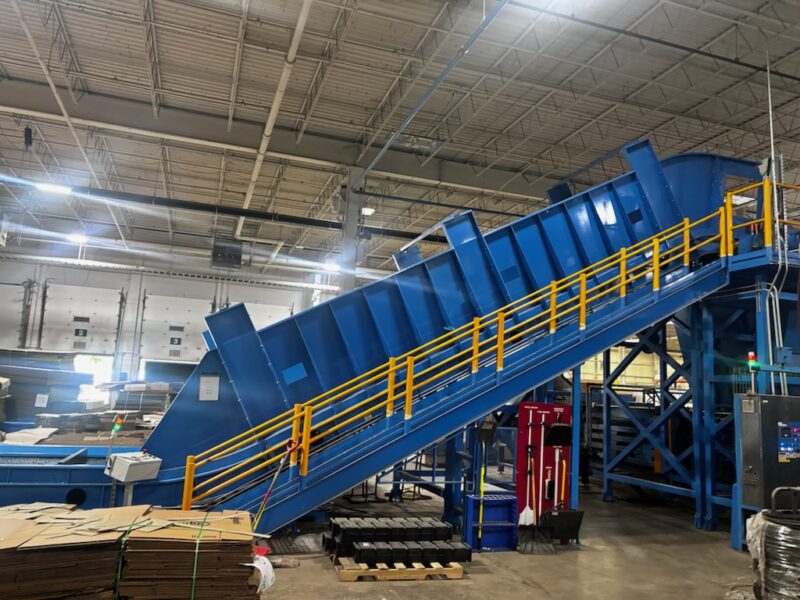

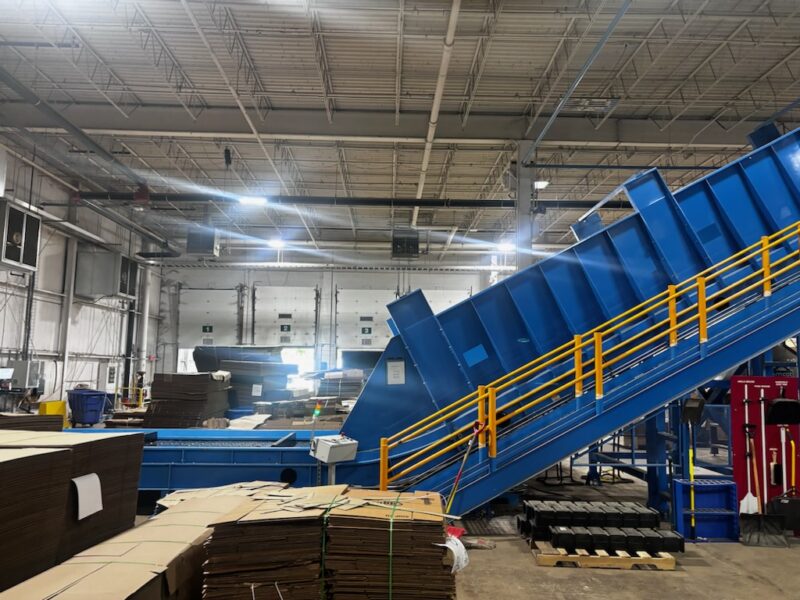

Heavy-duty industrial steel apron chain incline conveyor available for sale. This large-capacity conveyor was manufactured in 2021 and is configured with a horizontal floor-level loading section transitioning into a heavy-duty inclined conveyor with tall containment sidewalls and an elevated discharge.
The conveyor was utilized for handling corrugated/cardboard material as part of an automated baling operation. Its extremely heavy construction, approximately 76-inch-wide conveying surface, tall sidewalls and approximately 20-foot discharge elevation make it suitable for demanding recycling, baling, material recovery and bulk material-handling applications.
The conveyor features a heavy articulated steel conveying surface with raised transverse flights designed to positively carry material up the incline. The system includes its structural framework, elevated access platform, staircase and safety handrails.
Specifications & Features
- Year: 2021
- Equipment Type: Heavy-Duty Steel Apron Chain / Incline Conveyor
- Model: JSSD200150
- Electrical: 460 Volt / 60 Hz
- Drive Motor: Approximately 10 HP
- Conveyor Speed: Approximately 14.1 FPM
- Conveying Surface Width: Approximately 76″ (6′ 4″)
- Overall Width: Approximately 93″ (7′ 9″)
- Overall Floor Footprint Length: Approximately 48′
- Horizontal Loading Section: Approximately 16′ 4″
- Upper Conveyor Sidewall Height: Approximately 50″ (4′ 2″)
- Discharge Elevation: Approximately 20′ above floor

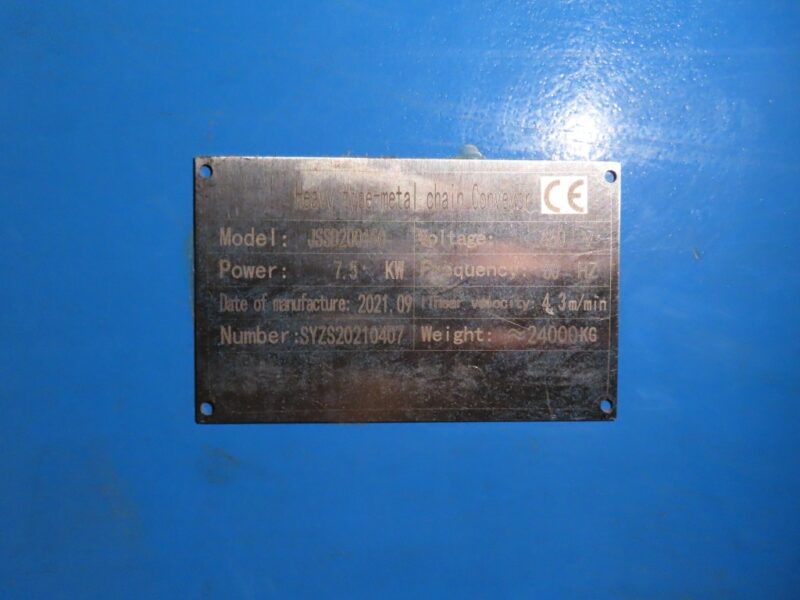

- Nameplate Weight: Approximately 52,900 lbs.
- Heavy-duty articulated steel apron/chain conveying surface
- Raised transverse material-carrying flights
- Horizontal loading section with transition to inclined conveyor
- High containment sidewalls
- Heavy welded structural-steel construction
- Forward and reverse conveyor operation

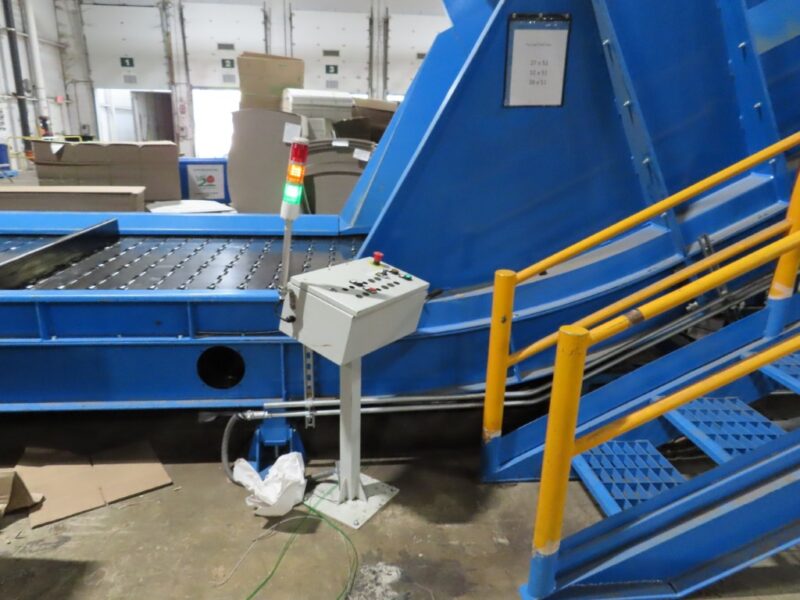

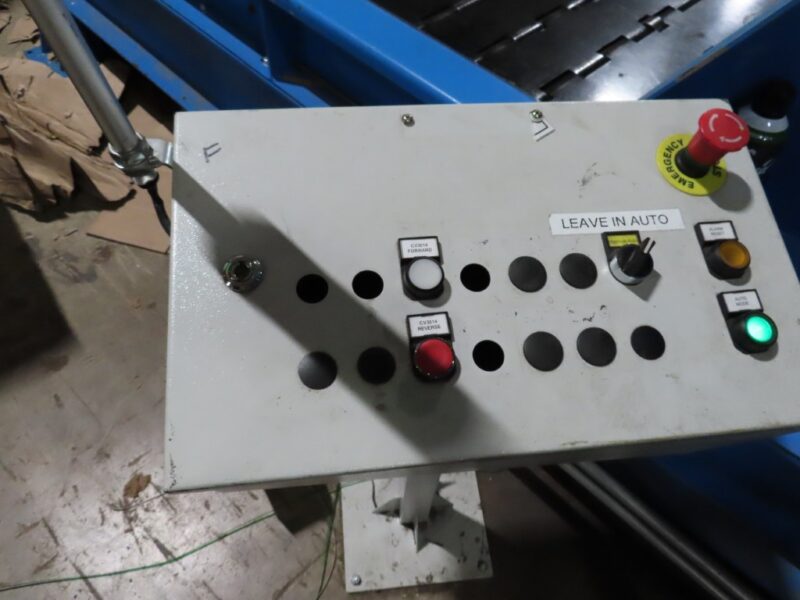

- Automatic/manual operating controls
- Emergency-stop control
- Status/indicator tower light

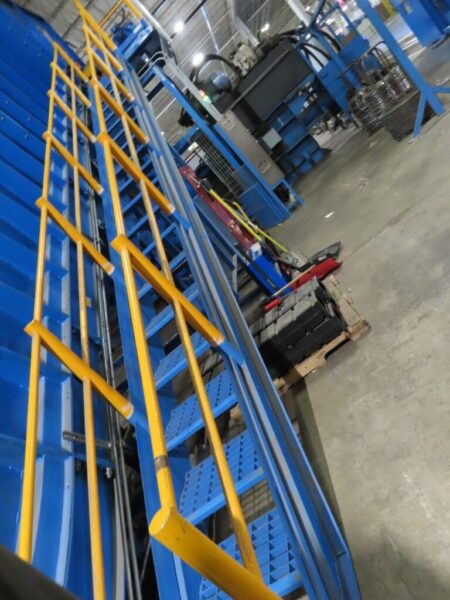

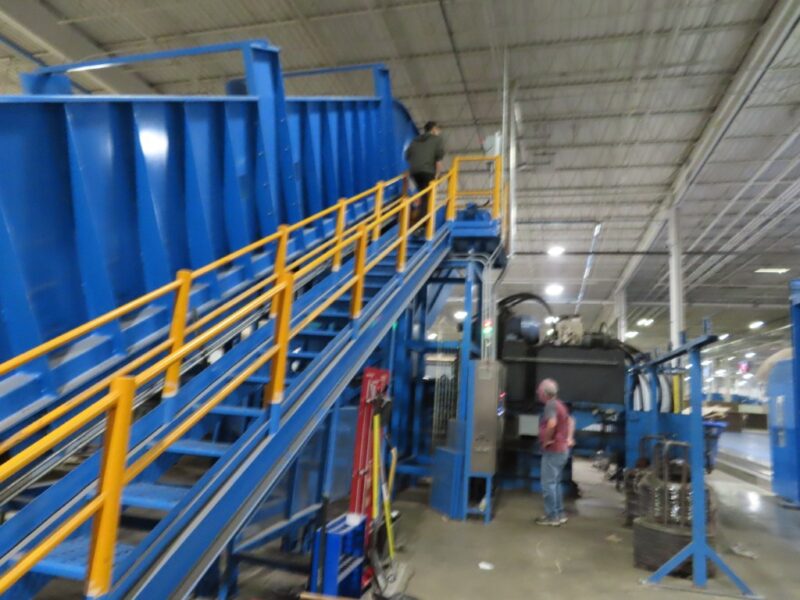

- Integrated industrial access staircase
- Safety handrails
- Elevated service/access platform
- CE-marked equipment
Designed for Heavy Material-Handling Applications
This conveyor’s combination of a wide steel conveying surface, tall containment walls and elevated discharge makes it well suited for applications involving:
Corrugated and cardboard scrap, baler feeding, recycling operations, paper and packaging waste, industrial scrap, bulky lightweight materials, material recovery systems and other heavy-duty conveying applications.
The conveyor is currently installed, allowing prospective buyers to evaluate the complete system prior to removal.
Price & Removal
PRICE: ON REQUEST
Equipment is located in the Great Lakes Region, USA.
Buyer is responsible for all rigging, dismantling, loading, transportation and freight costs. Rigging and transportation are not included in the equipment price.
Serious inquiries are invited. Contact Alltech Industrial Services for additional photographs, video, equipment information and purchasing details.
Important Equipment Disclaimer
All specifications, dimensions, weights, capacities, electrical information and other equipment information provided are approximate and believed to be accurate but are not guaranteed. All information must be independently verified by the buyer through inspection and/or other means prior to purchase. Equipment is offered subject to prior sale.
