HEM MODEL CYCLONE AUTO-C HORIZONTAL BAND SAW WITH AUTO BAR FEED


Contact Information
Contact Brian
414.639.0849
Visit Website
More Information

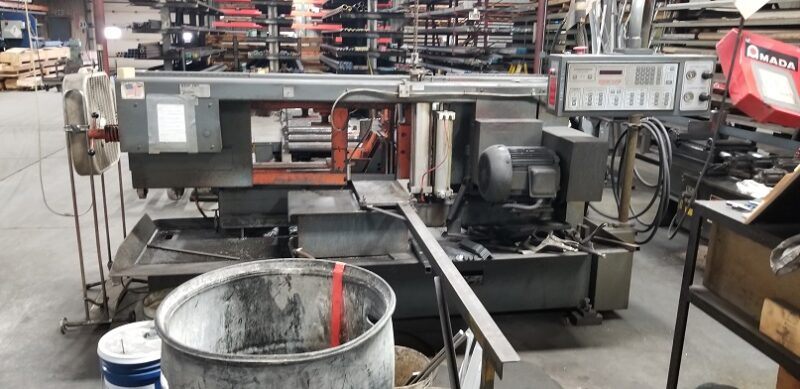

USED HEM MODEL CYCLONE AUTO-C HORIZONTAL BAND
SAW WITH AUTO BAR FEED* SN: 1020808 (New in 2008)
Condition: Very Good

Specifications:
Blade Size: 16′ x 1-1/4” x .042”
Blade Motor: 7.5 HP 3/60
Rectangular Capacity: 22” x 16”
Bar Feed: 0 to 24” stroke with multiple index
Discharge Support Table: 18”
Miter Capability: One Direction to 45 degrees
Variable Blade Speed:
Coolant Capacity:
Blade Guides: Carbide
Air Requirement: 85 PSI
Machine Weight: 3,500 lbs.
Bar Feed Weight: 1,500 lbs.
Machine Dimensions: 110” x 116” with Bar Feed

Equipped With:
Variable Speed Blade Drive Adjustable Clamping Force
Easy View All Function Control Adjustable Feed Rate
Automatic Operation Flood Coolant
Blade Brush Broken Blade Shut Off
Out of Stock Function Manual Blade Tension
(2) Hold-down Fixtures Bundle Capability
